ASP.NET SignalR – Clients

Outline

1. Hub Consumers

2. jQuery Clients

3. .NET Clients



1. Hub Consumers

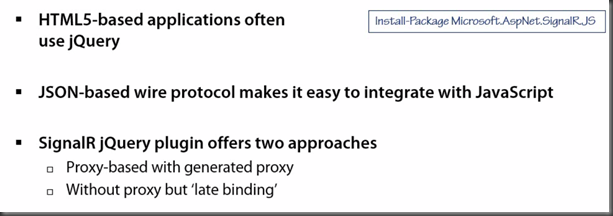

2. jQuery Client

First approach:

jQuery with Proxy – part I

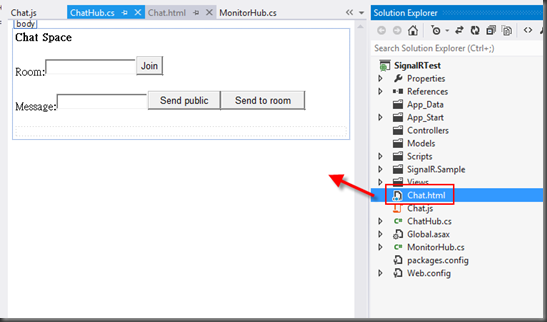

Demo 1 – UI preparation

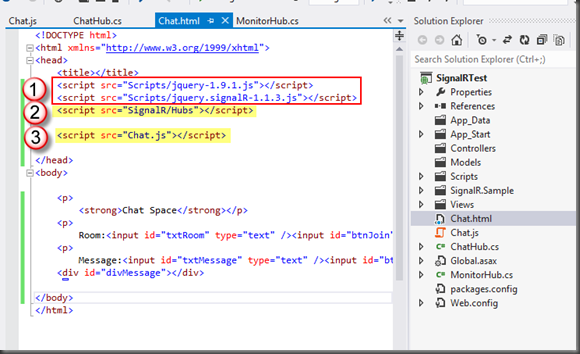

1. Must include both javascript files, jQuery.js & SignalR.js BEFORE 2. SignalR/Hubs

2. Must include SignalR/Hubs

3. Include personal javascript file



Demo 2 – SignalR Utilities (signalr.exe) to generate server.js file



jQuery with Proxy – part II



jQuery with Proxy – part III

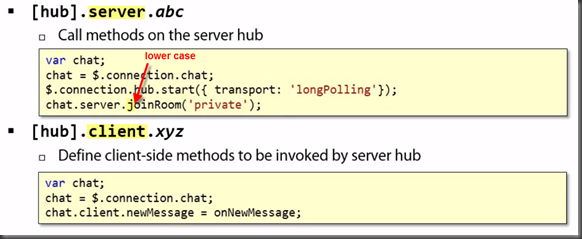

Demo 3 – Chat.js

Explain above 3 points:

1. chat.client.newMessage –> newMessage() is a client event method that can be called from server side. Define client behavior first

2. Once button click, trigger server side event by this line of code chat.server.sendMessage(xxx), so all clients will run client side event newMessage() which defined in previous step

3. Enforce to use longPolling as transport negociation protocal and start hub connection

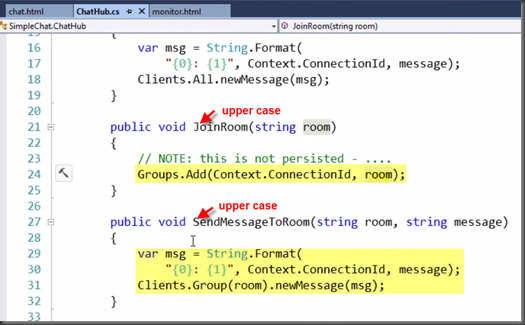

Demo – Join Group

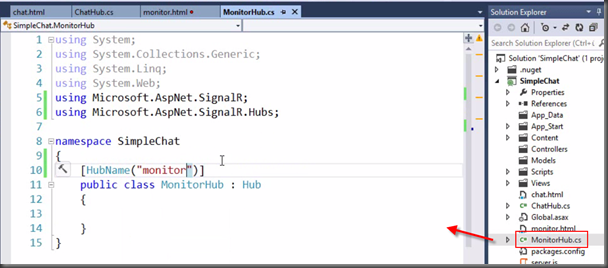

Demo – Monitor (test fail)



Second approach:

jQuery without Proxy File

Demo



3. .NET Client

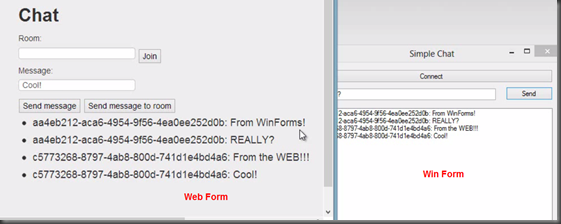

Demo – Win Form



Summary
