Entity Framework–Code First

Address.cs



AddressType.cs

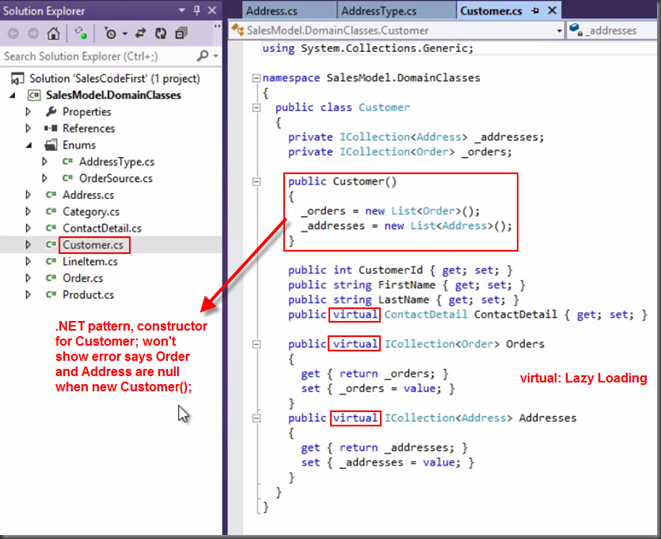

Customer.cs

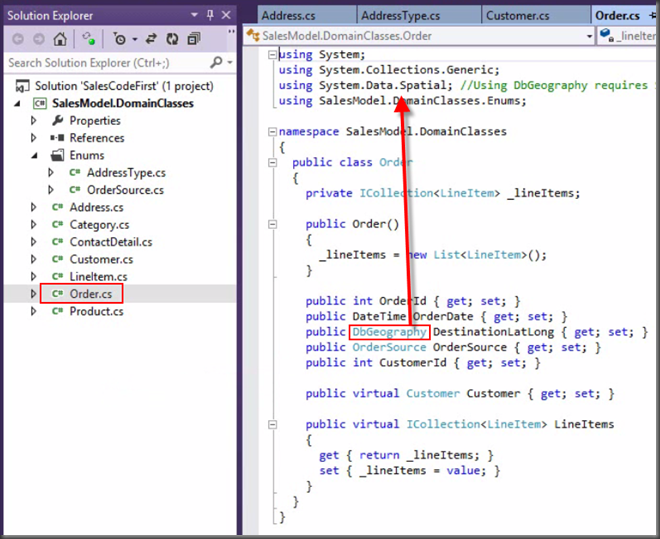

Order.cs



New project, SalesModel.DataLayer



SalesModelContext.cs : DbContext

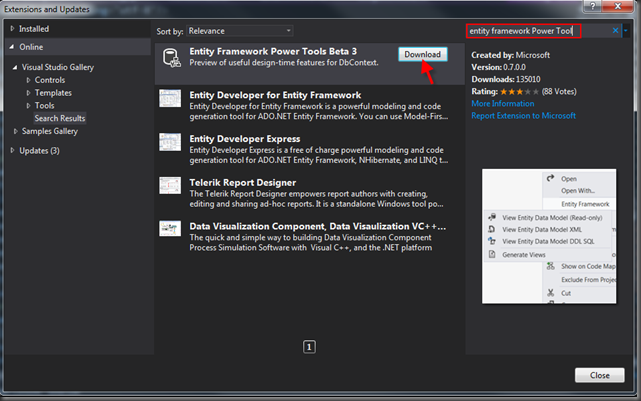

Install Entity Framework Power Tools, click TOOLS –> Extensions and Updates…

Search and Download it



Run “View Entity Data Model(Read-only)” by right click on the .cs file



Error 1, incorrect connection string, but the error is misleading, since we don’t need any connection string is this moment.

Solution: Set this project as StartUp project to refer to connection info inside App.config.

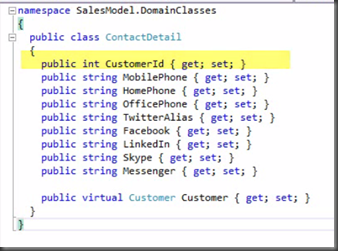

Error 2, no key defined for ContactDetail.



Entity Framework has 2 ways to auto define the key field of this class. Look for property name, if name is

1. Id

2. [type] + Id  => in this example, it should be ContactDetailId, not CustomerId



Solution, using DataAnnotation, [Key]



Error 3, no relationship definition



Solution, add [ForeignKey(name of associated foreign key)]



After all, the read-only entity data model will generate and show.
